// NXT-FLAT-HOOK
Our NXT-FLAT-HOOK solution is designed for photovoltaic installations on flat tile roofs, providing a secure, durable, and adaptable attachment solution ideal for residential applications.
With Aluminext Solar Racking’s NXT-HOOK system, you get the following benefits:
- Compatible with flat tile roofs.
- Uses a single fastener size (13 mm) to simplify installation and reduce the number of tools required.
- Compatible with tile roofs with slopes of up to 45° .
- Compatible with the NXT-RX rail and its accessories.
- Provides up to 1.25 in of height adjustment.
- Supports manufactured from stainless steel for enhanced strength and durability.
- Components designed for outdoor applications and corrosive environments.
- Designed to withstand wind speeds of up to 215 km/h (134 mph).
Wind speeds up to 134 mph
System Components
1

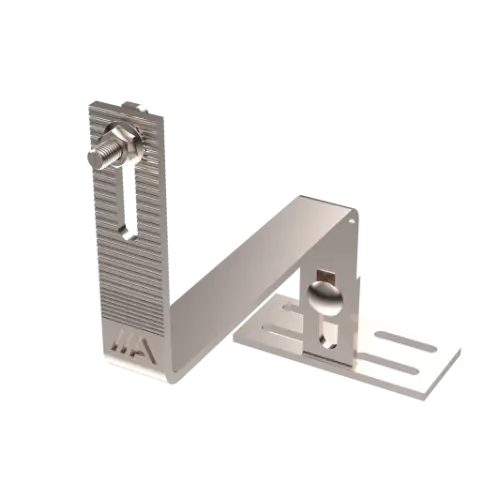

NXT-HOOK
2
NXT-RX
6105-T6 Aluminum Rail
3
NXT-AUA
Universal panel clamp for frames 30–46 mm
4
NXT-RS
Rail splices for NXT-RX.
5
NXT-CLIP
Plastic clip for cable management.
6
NXT-GC
Grounding terminal for NXT-RX
7
NXT-RXCAP
End Cap for NXT-R
8
NXT-AUACAP
End cap for NXT-AUA.
